96-Well Ring Magnet Plate with Integrated Cushion Base


The Permagen 96-well ring magnet plate was designed for use in manual and automation applications. Available in two magnet strengths for a wide range of protocols and includes integrated cushion base for use in automation accommodating for labware inconsistencies.

Guaranteed Safe Checkout

96-Well Ring Magnet Plate with Integrated Cushion Base

Our most popular ring magnet plate. Great all-around magnet which will meet or exceed most protocols.

For faster separations you can upgrade to the MSP500R, which comes with all of the same features, just stronger magnets



Easy Integration

Simple plug-and-play for many common protocol's

Fast Separations

Strong NdFeB Ring Magnets ensure fast, precise separations

Integrated Cushion

Cushion base compensates lor labware and consumable inconsistencies

Robot Friendly

SBS/ ANSI footprint to fit into all liquid handling robots

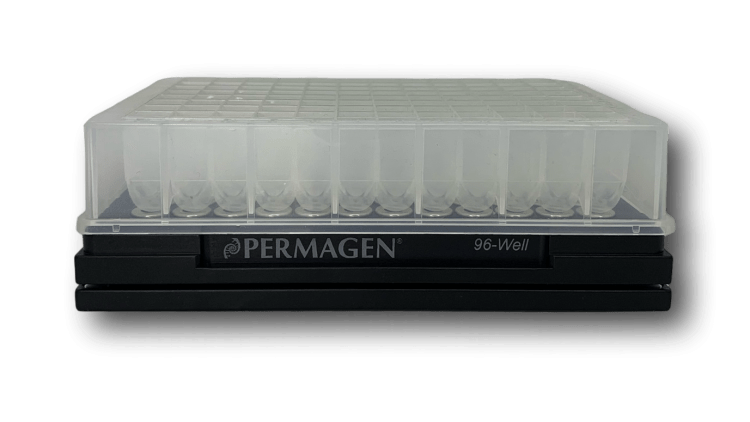

96-Well Cushion Plate with 1 mL microplate

The extras come standard!

  • Compatible with standard round or pyramid bottom microplates, deep well, and PCR Plates.
  • Fast bead separations using strong NdFeB magnets
  • Up to 2 mL working volumes (30 µL minimum)
  • Side cuts allowing liquid handling robot gripper
  • ANSI/ SBS compliant footprint to fit into all liquid handlers
  • Integrated cushion base to help compensate for robot and labware inconsistences
  • Made in the USA


This magnet was designed to be compatible with common microplates, all liquid handler robots, and any magnetic beads

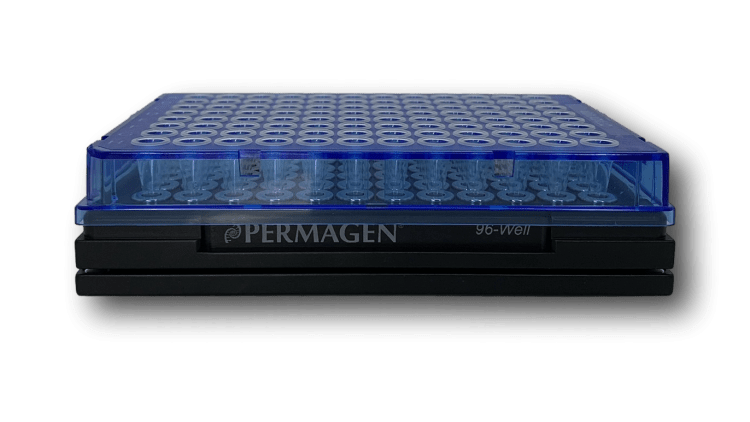

Super magnet plate with PCR microplate


The MSP500R has stronger magnets then the MSP480R. You can also use the stronger magnet for faster separations from smaller volumes

The MSP480R can replace products #A32782 or A001322 found at other vendors. The overall height is slightly larger so a slight Z modification will be necessary.  Our exact replacement can be found here

This plate accepts PCR plates (Full-, Semi-, and Non-Skirted) and most round or pyramid bottom microplates. Not recommended for Flat-bottom plates

Yes, this plate has a standard SBS/ ANSI compliant footprint to fit into any platforms

Yes, all Permagen products are available to be private labeled with your company logo/ part numbers for resale

Products can be purchased at our online shop,  via. purchase order, over the phone, or by requesting a quote

Join Our

We only send out new product announcements, sale notifications, and tradeshow dates.


Compatible with most 96-well microplates
Super strong magnets for fast separations
PCR volumes 50- 200µL
Deep well max volumes 2mL
SBS footprint to fit most liquid handlers


Size = 127.75mm x 85.47mm x 19.7mm tall
Weight = 705g
Magnets = 48 MGO (MSP480R) / 50 MGO (MSP500R) NdFeB
Country of origin = USA
For Research Use Only




Round bottom plates, Pyramid bottom plates, PCR plates, Compatible with any automated liquid handler, any magnetic beads
