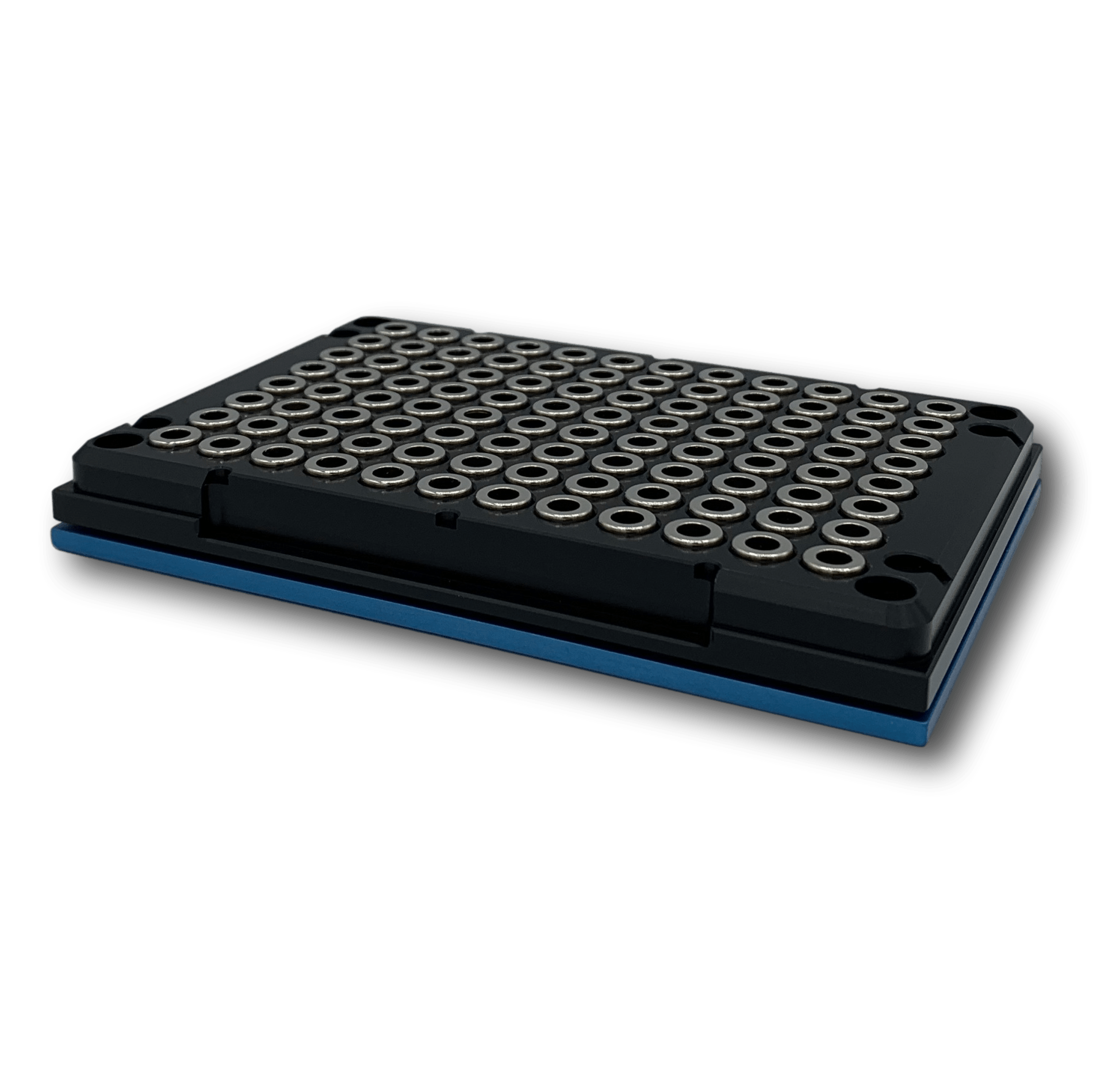

96-Well Bar Magnet Separation Plate Deep Well


Worldwide shipping available

Permagen’s most universal bar magnet plate. From PCR plates to almost any microplate including deep well, flat bottom, pyramid bottom, round bottom, full-skirt PCR, and 1/2 skirt PCR the MSPU650 has you covered

Guaranteed Safe Checkout
Purchase two or more and save 10% Purchase 10+ for a 15% discount

96-Well Bar Magnet Separation Plate Deep Well

The Permagen 96-Well Bar Magnet Separation Plate Deep Well plate was designed for use in manual and automation applications where pulling beads to one side of the wells is essential.

  •  Works with almost any microplate from PCR to deep well plates
  •  Integrated corner brackets to reduce movement of microplate associated with robots, shakers, etc.
  •  Super strong 52 GMO bar magnets for rapid bead separations
  •  Compatible with most 96-Well plates.
  •  Works with any magnetic bead compositions
  •  Solid Aluminum Design for consistent results and maximum durability
  •  SBS compliant footprint (127.75mm x 85.47mm)
  •  Working volumes of 30 µL – 2 mL
  •  Made in the USA

Not the product you were looking for? Try or product selection guide

Please contact us for volume discounts. If you are interested in OEM opportunities please feel free to contact us

SKU# MSPU650 – Plate only

SKU# MSPU650KT – Plate with Clear top plate for 0.2 ml PCR Strips


Deep Well Plates
Compatible with most deep well microplate
Fully Skirted PCR Plates
Most magnets would require and additional product for full-skirt pcr plates
Round Bottom Microplate
Pulls beads to sides of each well close to the bottom
Un-Skirted PCR Plates
Recommended for manual use as the plate can move front to back
The Results
Crisp pellet formations leaving significant area for removal
Previous slide
Next slide


Strong Magnets

Super Strong NdFeB Neodymimum magnets for greater performance with all magnetic beads

Solid Design

Solid aluminum design for years of trouble free use and more accurate results


Compatible with almost any microplate from PCR Plates to Deep Well plates and most other plates

Fast Separations

Strong magnets and design combine for fast separations up to 2 mL from deep well plates

Products can be ordered and shipped worldwide using any of these methods.


Ideal for NGS
Compatible with PCR skirted plates, round bottom, pyramid bottom, flat bottom, and deep well plates on any liquid handler with any magnetic beads


Size = 127.75mm x 85.47mm x 14mm
Weight = 427g
Magnets = 52 MGO NdFeB
Country of origin = USA
For Research Use Only


SKU: MSPU650 Plate Only, SKU: MSPU650KT Plate and Clear Top Plate Kit for 0.2 mL PCR Strips
