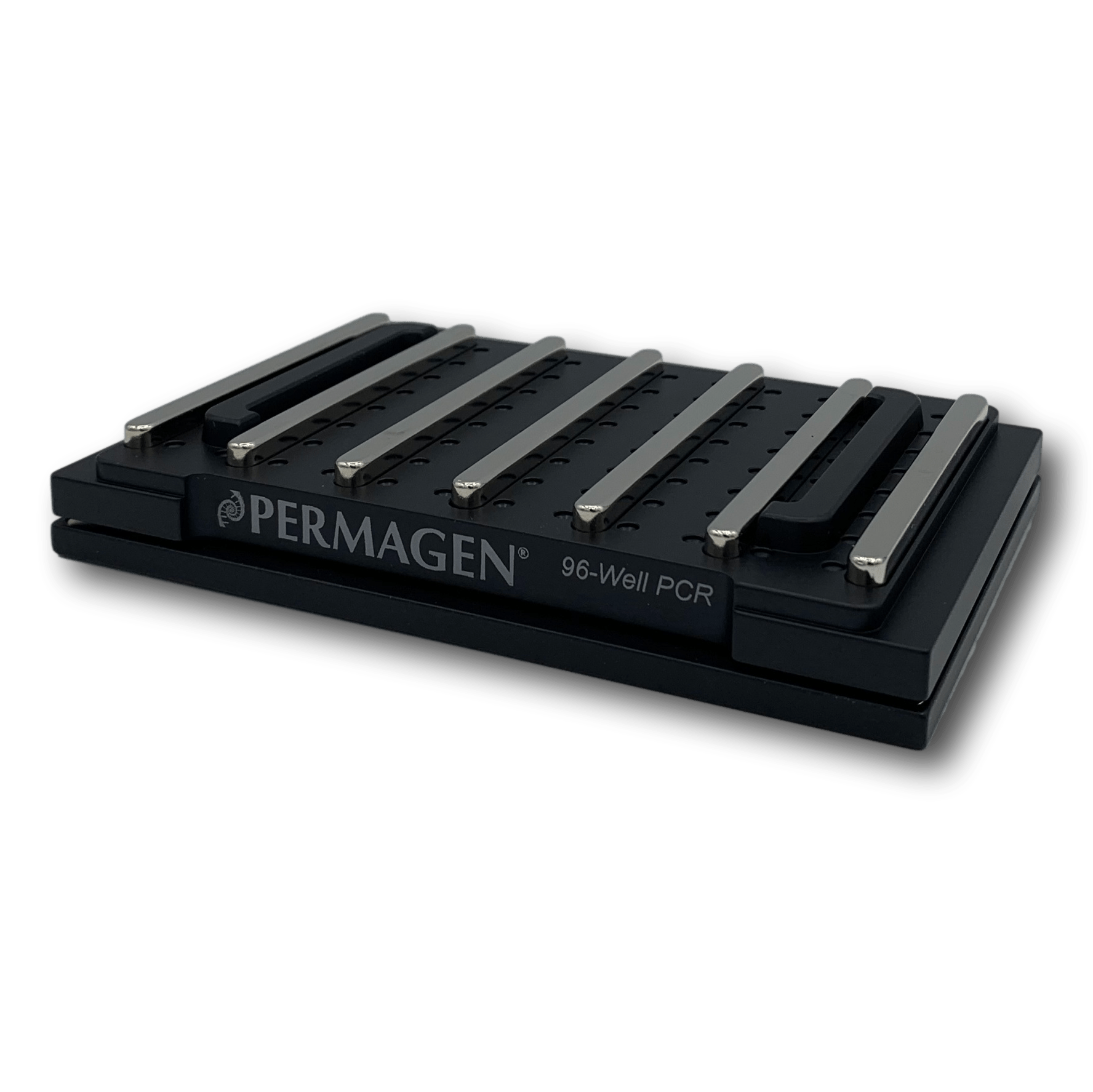

96-Well Side Pull Bar Magnet PCR Separation Plate

The Permagen 96-Well Side Pull Bar Magnet PCR Separation Plate was designed for use in manual and automation applications where pulling beads to one side of the wells is essential.  Most PCR plates are bent, leading to inconsistent lab results. Unlike most products, we have added two angled partial frames around the top of our plate, this helps with two things, straitening out the PCR plate, and leading it to the proper location on the magnets.

  •  Helps aid in flattening out warped or bent PCR plates, which is critical when working in low volumes
  •  PCR plates are held securely to reduce movement associated with robots, shakers, etc.
  •  Super strong 52 GMO bar magnets
  •  Compatible with most 96-Well PCR plates. Also works with (4) 0.2 mL PCR 8 strips
  •  Works with many magnetic bead compositions
  •  Solid Aluminum Design for consistent results and maximum durability
  •  SBS compliant footprint (127.75mm x 85.47mm)
  •  Working volumes of 30 µL – 200µL
  •  Made in the USA

Not the product you were looking for? Try or product selection guide for help Product Selection Guide

Please contact us for volume discounts.



Un-Skirted PCR Plates
Helps aid in making PCR plate flat, yielding better results
1/2 Skirted PCR Plates
Helps keep PCR plate in the correct position, significantly reduces movement causing varied results
Fully Skirted PCR Plates
Most magnets would require and additional product for full-skirt pcr plates
0.2 mL PCR Strips
Compatible with up to four 0.2 mL PCR 8-tube strips
The Results
Crisp pellet formations leaving significant area for removal

Have questions or need a quote? Please feel free to contact us


Strong Magnets

Super Strong NdFeB Neodymimum magnets for greater performance with all magnetic beads

Solid Design

Solid aluminum design for years of trouble free use and more accurate results


Compatible with most full, 1/2, and un-skirted PCR plates and 0.2 mL PCR strips

Fast Separations

Strong magnets and design combine for fast separations up to 200 µL from both plates and strips


Ideal for NGS
Ideal for almost any PCR application
Compatible with Full-skirt, half-skirt, un-skirted PCR plates, and PCR strips


Size = 127.75mm x 85.47mm x 14mm
Weight = 427g
Magnets = 52 MGO NdFeB
Country of origin = USA
For Research Use Only
