Permagen Labware

32 Tube X 0.2 mL PCR Strip Magnetic Separator


Worldwide shipping available

Permagen’s 32-tube PCR Separation rack features all of the same aspects of our MSR812 rack for easy protocol transition for labs wishing to scale up to four PCR strips at a time, or up to 32 individual PCR tubes

Guaranteed Safe Checkout
Purchase two or more and save 10% Purchase 10+ for a 15% discount

32 X 0.2 mL PCR Strip Magnetic Separator

The Permagen 32 x 0.2 mL PCR strip magnetic rack was designed specifically for maximum performance from PCR strips or individual 0.2 mL PCR tubes. New design allows the use of up to four strips at once.

  • Modeled after our MSR812 rack for for easy protocol transition
  • Will accommodate most 0.2 mL PCR strips with or without caps ( up to four 8-strips)
  • Can also be used with Individual 0.2 mL PCR tubes without performance loss
  • Compatible with most 8-tube, 12-tube PCR 0.2 ml strips
  • Angled tube holes allow strips to come close to magnets for maximum efficiency and easy aspiration
  • Each tube has its own individual strong neodymium magnet
  • Solid aluminum design for durability
  • Made in the USA

Not the product you were looking for? Try or product selection guide

Volume discounts available, please call or email to request a quote

If you are interest in OEM opportunities, or private labeling please feel free to contact us

Compatible With 0.2 mL PCR Tubes
Works with up to four, 0.2 mL 8 PCR strips and individual tubes
Designed for optimum performance
Angled Holes For Maximum Magnetic Reaction
After Magnetic Separation
Beads are pulled to inner tube wall leaving clean bottom and outer wall for removal

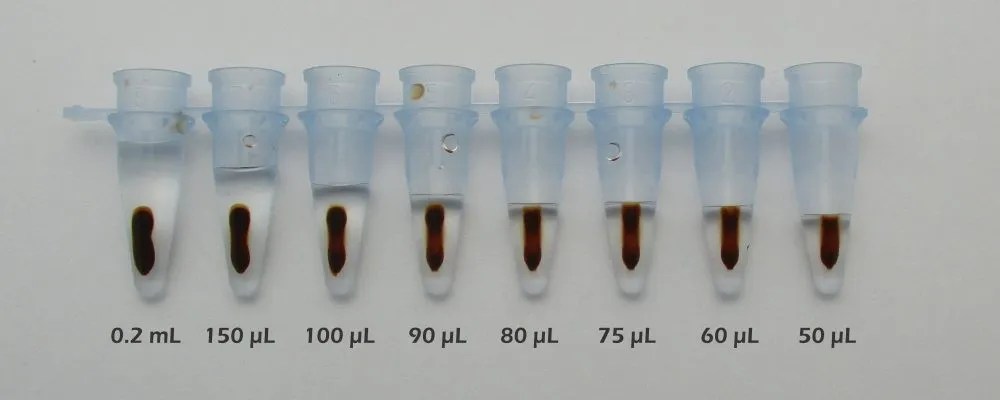

Various Sample Sizes
From 30 µL up to 0.2 mL capabilities
30 µL - 0.2 mL Separations Complete
Beads are pulled to inner tube walls leaving clean tube bottoms for removal and tip tracking down the front of the tubes
Previous slide
Next slide

Products can be ordered and shipped worldwide using any of these methods.


Compatible with any magnetic beads
Super strong magnets for fast, precise separations
Ideal for NGS
Process up to 32 samples from PCR strips or individual tubes
Multichannel pipetting compatible
Rubber feet to reduce slipping


Size: 149.9mm x 37.6mm x 33.0mm tall
Weight: 180g
Magnets: 50 MGOe NdFeB
Country of origin: USA
For Research Use Only


DNA/RNA purification
PCR cleanup
ChIP assays
